High Mast Solar Stadium Light Poles (12m - 30m)
Home > systems > lighting-poles

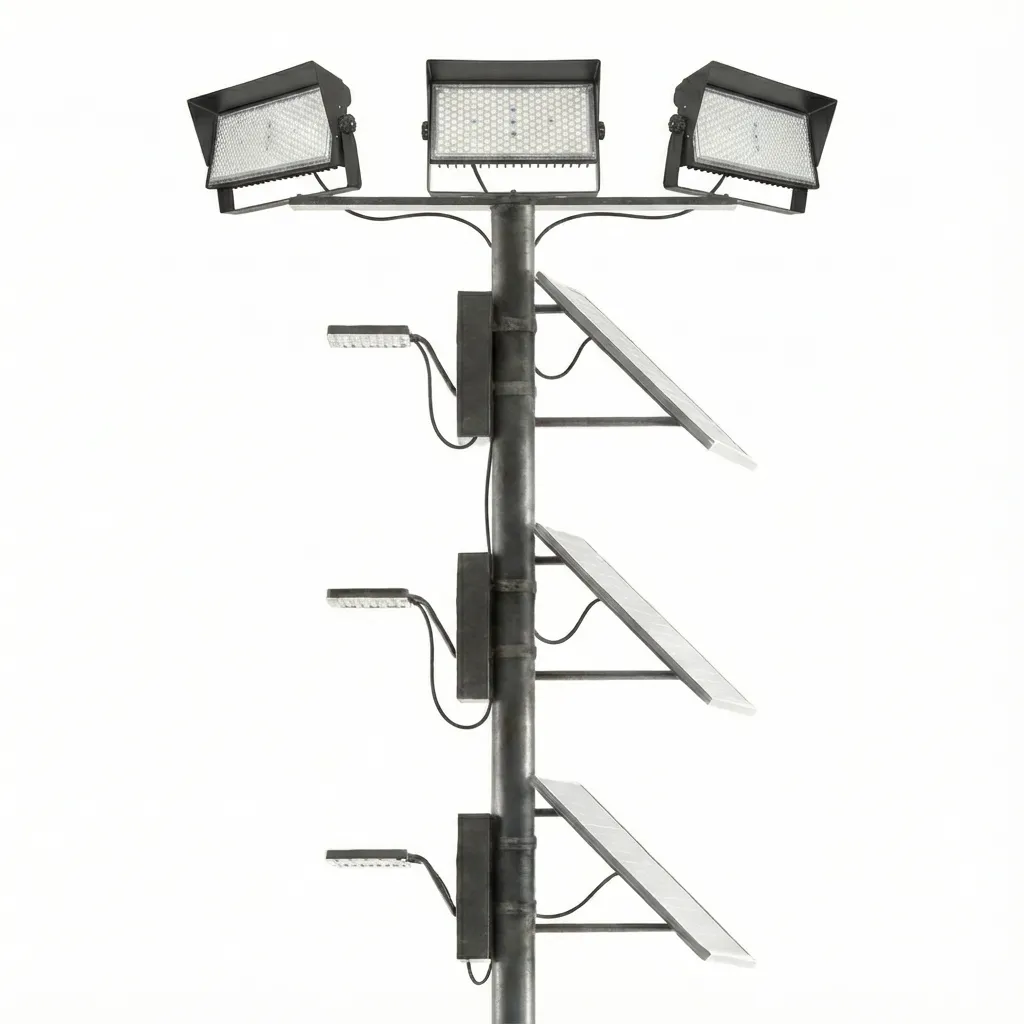

Engineered for Solar: Supporting Heavy Wind Loads
- Reinforced Structural Integrity: Thicker steel plates and reinforced flanges specifically calculated to handle the torque of large solar panels.
- Low Deflection Design: Strict deformation control (< 1%) prevents solar panel micro-cracks caused by pole swaying in high winds.

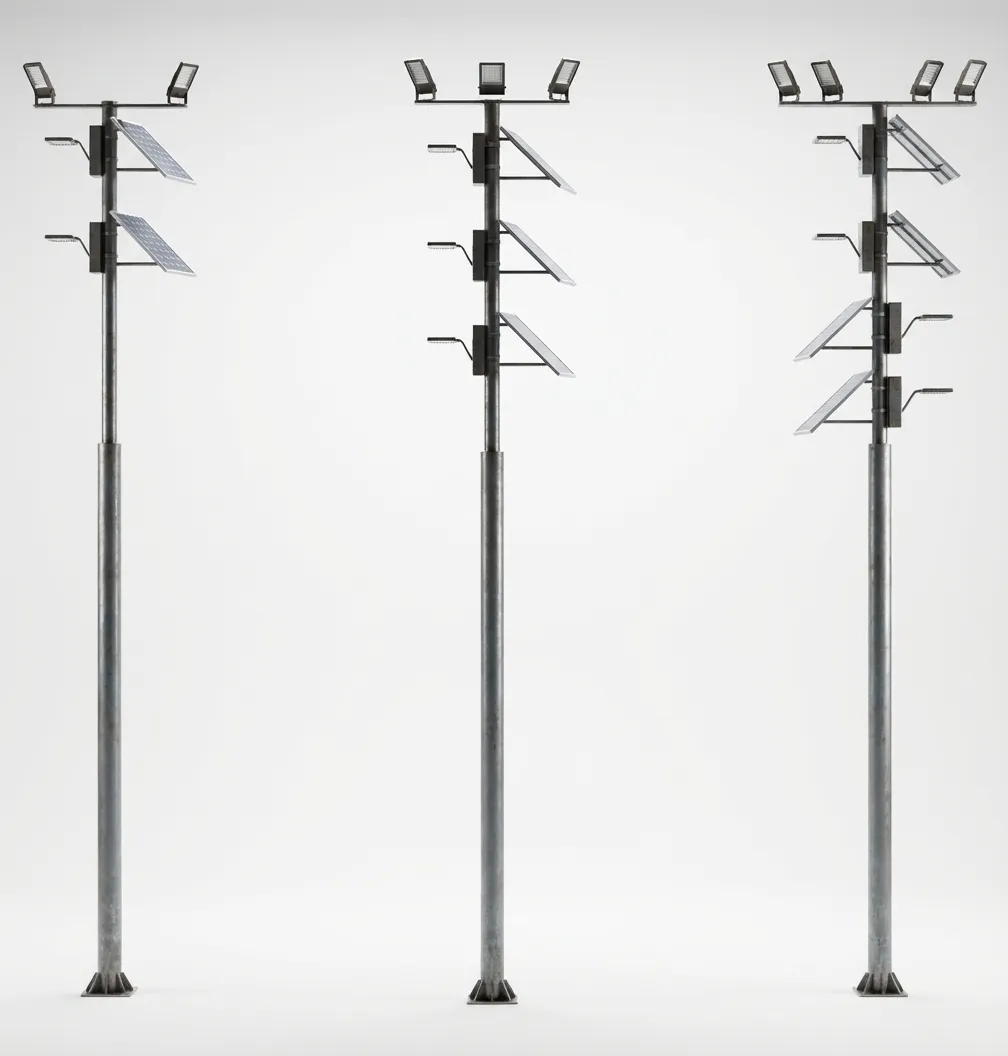

- Integrated Solar Mounting: Modular bracket design for quick and secure installation of panels and lighting fixtures.
- Battery & Control Storage: Options for top-mounted or base-integrated battery cabinets to prevent theft and vandalism.
- Pole Height: 12–30 meters
- Material: Galvanized Steel
- Wind Resistance: Up to 24.5 m/s
- Finish: Anti-corrosion coating, powder-coated surface
- Installation Type:Modular, Quick Assembly
- Compliance:International Safety Standards

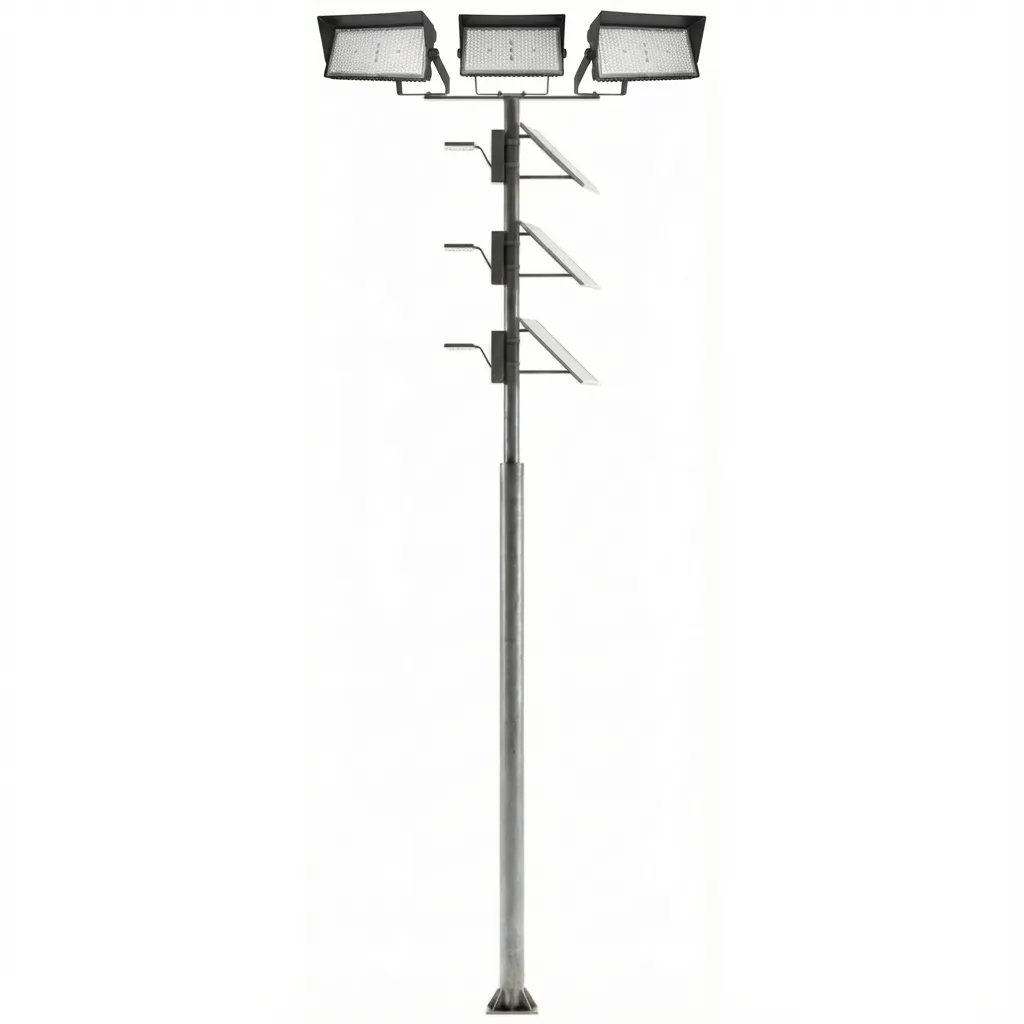

Heavy-Duty Galvanized Steel Structure for Extreme Weather
Our lighting poles and structural supports are engineered for safety, stability, and long-lasting performance, forming the backbone of your solar stadium lighting system. Designed to seamlessly integrate with LED floodlights, solar panels, lithium batteries, solar controllers, and smart IoT monitoring, these structures ensure optimal illumination, reliable energy distribution, and efficient remote management. With fast modular installation and excellent wind resistance, they complete the six-core Solar Lighting Solutions framework, providing a solid foundation for high-performance stadium lighting.
Manufactured using high-tensile Q235/Q345/Q460 steel, our stadium high mast poles are built to survive the harshest environments on earth. From salty coastal winds to desert sandstorms, our multi-layer protection system guarantees a 50-year structural lifespan.
Site-Specific Wind Load & Structural Calculations
We use ANSI/TIA-222-G standards to calculate the precise pole thickness.
• CAD Simulation: Tests stress points from solar panel weight.
• Safety Factor: Engineered with a 1.25x margin for Category 5 hurricanes (300km/h).
Advanced Anti-Corrosion: Hot-Dip Galvanization
Rust is the enemy. We apply a dual-layer defense for a 50-year lifespan.
• Hot-Dip Galvanization: Immersed in molten zinc (ASTM A123) to bond with steel.
• Powder Coating: A final UV-resistant finish against salt spray.

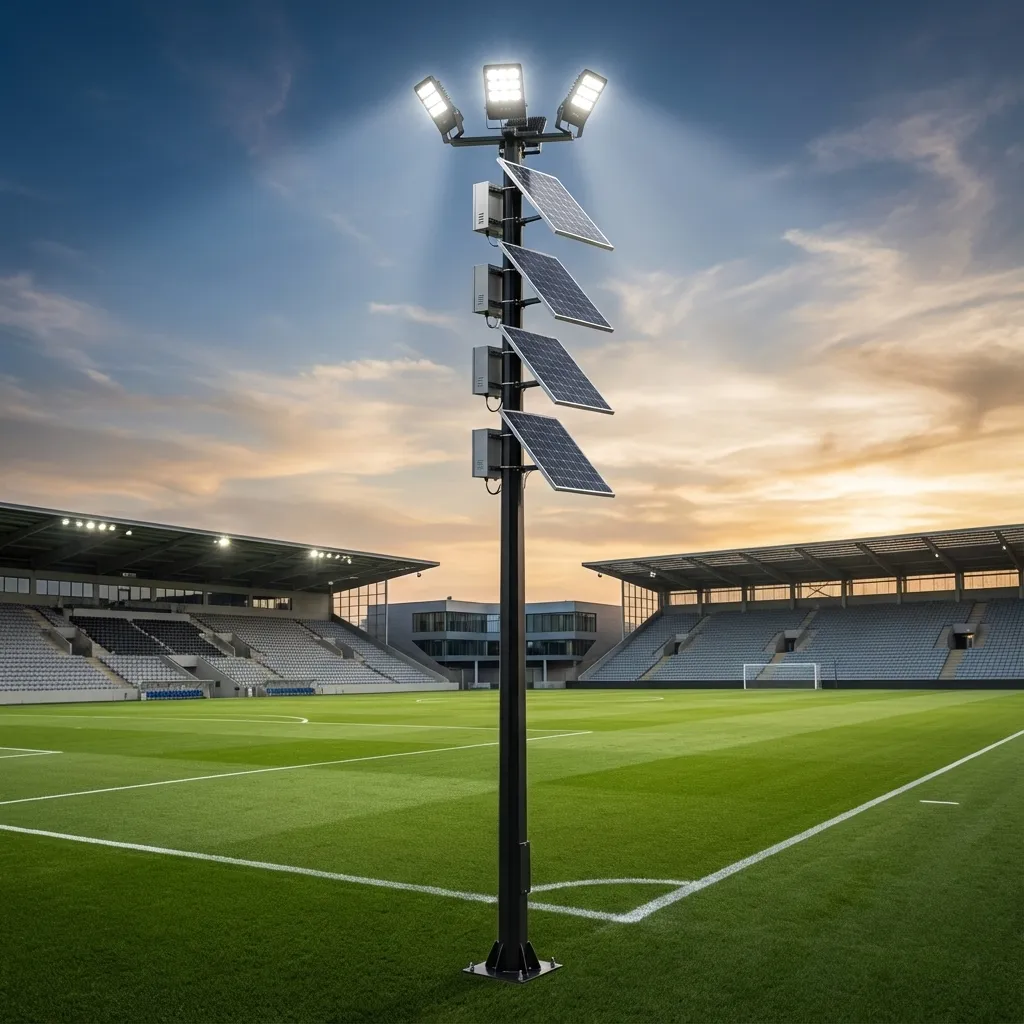

Integrated Solar-Ready Design & Maintenance
Unlike street poles, ours are designed for the solar era.
• Internal Routing: Protects wiring from weather and vandalism.
• Easy Access: Reinforced service door with anti-theft locks for controllers.
Technical Specifications & Dimensions
The reliability of a solar football lighting system starts with its foundation. Our poles are manufactured using premium high-strength steel and subjected to rigorous galvanization processes, ensuring maximum safety and a 50-year service life in the most demanding global environments.
| Specification Item | Technical Data |
|---|---|
| Brand Name | LedSportX |
| Model Type | Customized Single-Tube Pole |
| Height Options | 12m–30m (Customizable) |
| Raw Material | High-Strength Steel (Q235B / Q355 / Q420B) |
| Wind Resistance | Up to 24.5 m/s (Typhoon Rated) |
| Design Standards | ANSI / TIA-222-G / GB Standards |
| Surface Treatment | Hot-dip Galvanized (ASTM A123 / ISO 1461) |
| Service Lifespan | ≥ 25 Years |
| Maintenance System | Manual / Electric Winch System (Optional) |
| Finish Color | Custom Color (Powder Coating) |
| Place of Origin | China (ISO9001 Factory) |
Precise Engineering & Foundation Design Support
Don’t let installation guesswork compromise safety. For every high mast order, LEDSportX provides a comprehensive AutoCAD engineering drawing tailored to your project’s specific wind load and soil conditions.
What’s Included in Our Design Pack:
Structural Analysis: Validating pole shaft thickness and slip-joint overlap.
Solar Loading Check: Ensuring the top bracket can withstand the wind drag of your specific solar panel array.

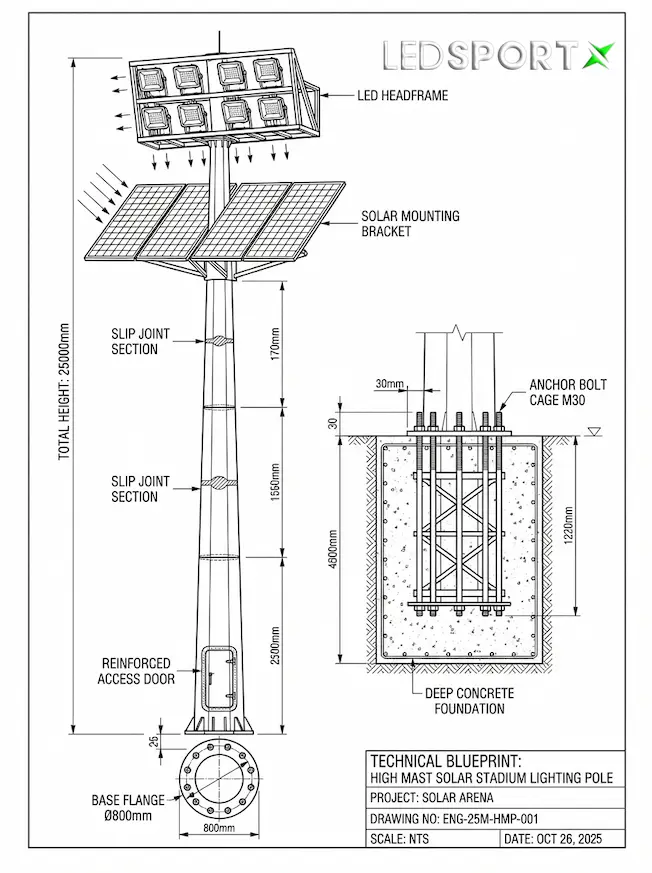

Foundation Layout: Detailed anchor bolt cage dimensions and concrete depth recommendations (as shown in the diagram) to ensure stability in 300km/h winds.
Quality Assurance & Acceptance Standards (QA/QC)
All LEDSportX lighting poles undergo rigorous inspection before leaving the factory. Our manufacturing process strictly adheres to international safety and quality standards (GB/T, ASTM, ISO).
1. Welding Technology & Structural Integrity
One-Time Forming: The main pole shaft is formed in a single piece using high-strength Q235/Q355 steel.
Automatic Submerged Arc Welding: Welding seams are smooth and flat. The convexity error of the weld relative to the pole body is ≤ ±1mm.
Flaw Detection: All welds undergo color flaw detection tests to meet international GB/T welding standards.
Joint Connection: Slip-joint sections are secured using high-strength through-bolts and set screws for maximum stability.
2. Hot-Dip Galvanization (Anti-Corrosion)
Process: Full hot-dip galvanization treatment (inside and out).
Zinc Layer Thickness: ≥ 85μm (microns), exceeding standard requirements.
Surface Quality: Smooth finish with no wrinkles, zinc tumors, peeling, or spots. Adhesion meets GB2694-98 / ASTM A123 standards.
Durability: Guaranteed color retention for 8 years; anti-corrosion lifespan > 25 years.
3. Electrostatic Powder Coating
Material: Outdoor-grade pure polyester powder for superior weather resistance.
Thickness: Coating thickness ≥ 100μm.
Performance: Adhesion reaches GB9286-880 Class 0; Hardness ≥ 2H. Surface is smooth and UV-resistant.
Color: Customizable based on RAL color codes (as specified by the client).
4. Design Safety & Maintenance
Wind Resistance: Standard design basis is 24.5 m/s (88.2 km/h).
Safety Factor: Design safety coefficient of 1.8. Design lifespan > 25 years.
Maintenance Access: Features a flush-mounted “backpack” style service door. The door surface is smooth with a flatness error ≤ ±1mm for seamless integration.
Technical Compliance & Executive Standards
We strictly adhere to the following national and international manufacturing standards to ensure structural safety and material consistency:
GB/T 2694-88: Quality Standard for Hot-Dip Galvanizing (Equivalent to ASTM A123).
GB 10854-89: Outer Dimension Specifications for Steel Structure Welding.
GB 700-88: Standard for Carbon Structural Steel (Q235 Grade).
GB 1591-93: Technical Conditions for High-Strength Low-Alloy Structural Steel (Q355/Q420 Grade).
GB 2519-88: Varieties of Hot-Rolled Steel Plates and Strips.
DL/T 646-98: Manufacturing Technical Conditions for Transmission & Lighting Steel Poles.
AASHTO 1994: Standard Specifications for Structural Supports for Highway Signs, Luminaires, and Traffic Signals (USA).
Precision Manufacturing Tolerances
1. Dimensional Precision
Taper Ratio: 12:1000 (1.2%)
Straightness Deviation: < 0.2%
Length Tolerance: < +5mm
Across Flats Tolerance: +2mm
Shaft Straightness: < 1mm (per meter)
Shaft Twist: < 5°
2. Flange & Welding Precision
Flange Perpendicularity: < 1° (Ensures vertical alignment)
Flange Welding Position Error: < 2mm
Arm/Bracket Twist: < 2° (If applicable)
3. Coating & Performance Specs
Galvanization Thickness: ≥ 85μm (Microns)
Powder Coating Thickness: ≥ 100μm
Design Safety Factor: 1.8 (High Safety Margin)
Design Wind Speed: Standard 24.5 m/s (88.2 km/h).
Technical Testing Protocols
To ensure durability in harsh environments, every batch undergoes the following strict verification tests:
1. Adhesion Test (Cross-Cut Method)
Method: Cross-hatch cuts are applied, followed by 12 vertical pulls using specialized adhesive tape.
Result: No peeling or detachment of the coating (Class 0 Adhesion).
2. Galvanization Thickness Test
Method: Random sampling of 30 distinct points on the pole shaft.
Result: The arithmetic mean thickness is > 86μm, ensuring robust protection.
3. Salt Spray Corrosion Test (ASTM B117)
Condition: Continuous exposure to 5% NaCl solution at 35°C.
Duration: 96 Hours.
Result: No yellow rust or corrosion spots observed (Simulating coastal/marine durability).
4. Uniformity Test (Preece Test)
Method: Copper sulfate immersion method (ASTM A239).
Result: After 6 consecutive immersions, no copper deposits (red spots) appear on the surface, proving the zinc layer is uniform and intact.
Pure Polyester Powder Coating Specifications
We use only premium outdoor-grade pure polyester powder to ensure superior UV resistance and prevent chalking (fading) over time.
1. Physical Properties & Application
Powder State: Uniform color, loose texture, free from caking or clumping.
Sieve Residue (88μm): < 0.5% (Fine particle size).
Curing Conditions: Baked at 180-200°C (±2°C) for 10-20 minutes to ensure full cross-linking.
Appearance: Smooth and flat surface. Slight orange peel texture is permissible (Standard industrial finish).
Film Thickness: ≥ 100μm.
Color Matching: Strictly adheres to agreed standard color chips (RAL System) within allowable tolerance.
2. Gloss Levels (Customizable)
High Gloss: ≥ 85%
Semi-Gloss: 51% – 84%
Matt (Satin): 15% – 50%
Flat / No Gloss: < 14%
3. Mechanical Performance (Durability)
Pencil Hardness: ≥ 2H (No scratches, highly scratch-resistant).
Adhesion (Cross-Cut Method): Class 0 (Highest bonding strength, ISO 2409).
Impact Resistance: 50kg/cm².
Bending Test (Conical Mandrel): 3mm pass (Excellent flexibility without cracking).
Cupping Test (Erichsen): ≥ 6mm (Resists deformation).
Installation Site Requirements & Environmental Pre-check
To ensure optimal performance and structural safety over the 25-year lifespan, the installation site must meet the following environmental criteria before construction begins:

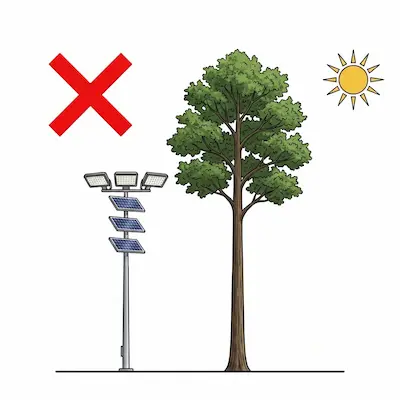

1. Solar Access (Obstruction-Free) The installation site must be clear of tall trees, buildings, or other structures that could shade the solar panels, ensuring maximum daily sunlight exposure for efficient charging.

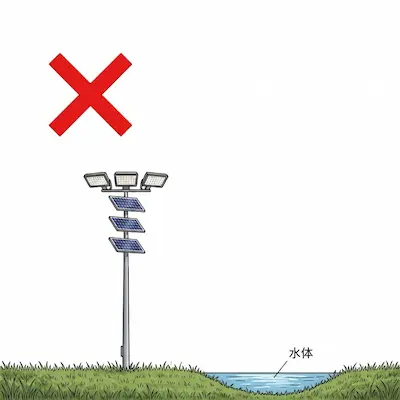

2. Site Drainage The ground level must have adequate natural or engineered drainage. The area immediately surrounding the pole base should be free from standing water or persistent puddling after rain.

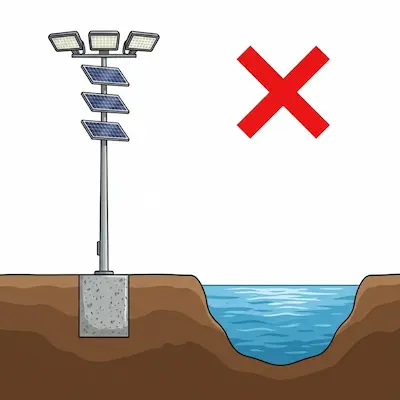

3. Flood Risk Mitigation If a river, pond, or low-lying water body is within 10 meters of the site, the lowest point of the concrete foundation must be elevated above the 50-year historical flood level.

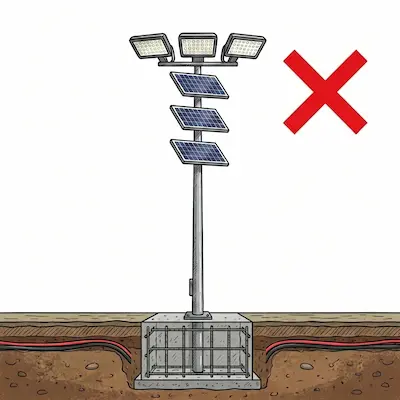

4. Underground Utilities Survey Before any excavation, the site must be surveyed to ensure no public utilities (power cables, fiber optics, gas pipes) are buried beneath the foundation area to prevent hazardous construction accidents.
Foundation & Anchor Bolt Specifications
The structural integrity of a lighting pole is determined by hidden details. Unlike competitors who use single-side welding, LEDSportX prioritizes:
- Double-Sided Welding: Full penetration welding to prevent cracking.
- Heavy-Duty Flange: Calculated width to match the torque of the pole shaft.
- Surface Treatment: Hot-Dip Galvanization (Standard) + UV Resistant Powder Coating.
- High-Strength Bolts: We use Grade 6.8 / 8.8 anchor bolts for all High Mast structures.
| No. | Height (m) | Foundation Size (L × W × Depth) mm | Bolt Diagonal (PCD) mm | Anchor Bolt Spec (Qty × Diameter) |
|---|---|---|---|---|
| Part 1: Standard Street Light Poles | ||||
| 1 | 4m | 400 × 400 × 800 | Ø 220 | 4 × M18 |
| 2 | 4m – 6m | 500 × 500 × 1000 | Ø 280 | 4 × M20 |
| 3 | 6m – 8m | 600 × 600 × 1400 | Ø 360 | 4 × M24 |
| 4 | 8m – 12m | 800 × 800 × 1500 | Ø 400 | 4 – 6 × M28 |
| Part 2: High Mast Stadium Poles (Heavy Duty) | ||||
| 5 | **15m** | 1200 × 1200 × 2000 | Ø 580 | **12 sets × M30** |
| 6 | **18m** | 1500 × 1500 × 2500 | Ø 680 | **16 sets × M30** |
| 7 | **20m** | 1800 × 1800 × 2800 | Ø 760 | **16 sets × M30** |
| 8 | **25m** | 2200 × 2200 × 3500 | Ø 920 | **20 sets × M33** |
| 9 | **30m** | 2500 × 2500 × 4000 | Ø 1100 | **24 sets × M36** |
Engineering Note: 1. “PCD” refers to the Pitch Circle Diameter of the flange holes. 2. Foundation depth may vary based on local Soil Bearing Capacity (SBC). The above data assumes standard cohesive soil. 3. For coastal areas (Typhoon Zones), we recommend increasing the foundation volume by 20%.
Project FAQ & Support
From initial wind load calculations to final installation guidance, LEDSportX supports you at every stage. Here are the answers to common inquiries from our global partners about customization and technical support.
No special truck is needed. We use a Slip-Joint (Telescopic) Design. A 30m pole is typically divided into 3 or 4 sections (each < 11.8m). These sections are "nested" inside each other (like Russian dolls) to fit perfectly into a standard 40ft High Cube Container. This design saves over 60% on ocean freight costs compared to flanged connections.
Yes. We provide a full Structural Calculation Report free of charge. This includes Wind Load analysis based on ANSI/TIA-222-G or your local code, foundation stress analysis, and pole shaft deflection ratios. Just provide your site's "Basic Wind Speed" and "Soil Type."
Absolutely. Since we manufacture from raw steel plates, we can weld custom mounting brackets at any height. Common requests include:
Lightning Rods (Top tip)
CCTV Camera Brackets (Mid-pole)
4G/5G Antenna Mounts
Anti-Climbing Spikes Please specify the weight and wind area of your equipment when ordering.
We provide comprehensive support in three tiers:
Standard: Detailed installation manuals and foundation drawings (Free).
Remote Guidance: Video conference support with our engineers during assembly.
On-Site Supervision: For large stadium projects, we can dispatch a technical engineer to your site to supervise your local team (Daily rates + travel expenses apply).
Standard Poles (15m-25m): 10 - 15 Days.
Complex High Mast (30m+ with lowering system): 20 - 25 Days.
Urgent Orders: Please contact our sales team. We maintain a stock of standard steel plates to expedite emergency projects.
Why Choose LEDSportX High Mast Poles?
- Factory Direct: No middleman. You get the factory price with consistent quality control.
- Free Structural Design: Provide your site location, and our engineers will calculate the exact wind load requirements for free.
- 5-Year Warranty: We stand behind our galvanization quality and structural integrity.
The Lighting Poles & Structures provide a robust physical foundation for the entire lighting system. Engineered for high wind resistance, structural stability, and long-term outdoor use, they ensure safe and reliable installation of solar panels and LED floodlights. Modular design allows flexible configuration to suit different stadium sizes and layout requirements.
300 km/h Wind Load. Zero Compromise.
Don’t risk structural failure. Our high-mast poles are custom-engineered using Q355 steel to support the specific weight and wind drag of solar arrays, ensuring absolute safety even in hurricane conditions.
