Reliable Deep-Cycle Lithium Battery Systems for Solar Sports Lighting
Home > systems > lithium-battery-system
The LiFePO4 Advantage: Safety, Longevity, and Efficiency
Unmatched Safety: LiFePO4 is the most stable lithium chemistry, eliminating the risk of thermal runaway or explosion even in high-heat stadium environments.
6000+ Deep Cycles: Built for longevity, our batteries offer up to 10x the lifespan of traditional lead-acid batteries, delivering over 10 years of reliable service.

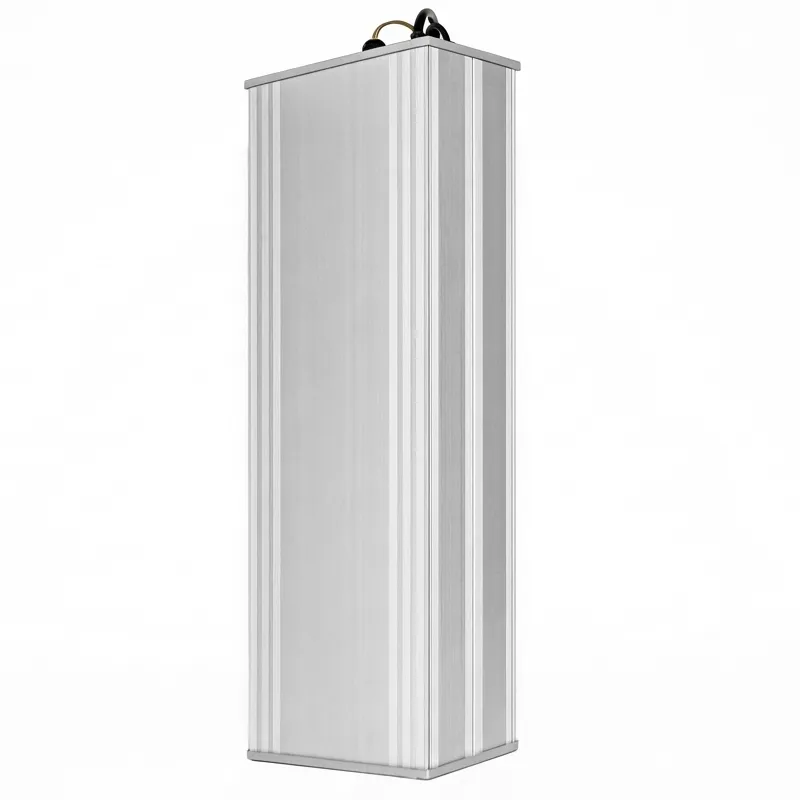

High Energy Density: Compact and lightweight design allows for easier integration into lighting poles or underground cabinets without sacrificing capacity.
Battery Type: LiFePO4 (Lithium Iron Phosphate)

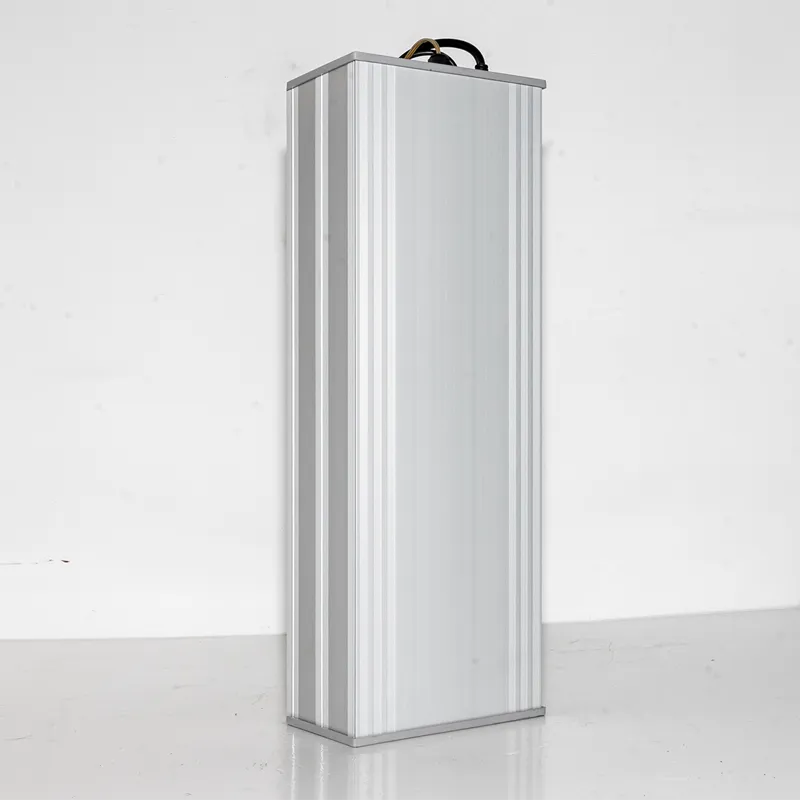

Case Material: Stainless Steel Case
Discharging Temperature: -30°C ~ 60°C
- Charging Temperature: 0°C~ 55°C
- Max Charging Current: 100A
Nominal Voltage: 24V
Warranty:5 Years
- Origin: Guangdong, China
Intelligent Energy Management: Integrated Smart BMS Technology
Multi-Level Protection: Automatic safeguards against over-charging, over-discharging, short circuits, and overheating.
Cell Balancing: Ensures all internal cells remain synchronized, maximizing the usable capacity and preventing premature aging.
Data Accuracy: Provides precise State of Charge (SoC) and State of Health (SoH) monitoring for the entire lighting system.
Designed for Solar Lighting: Maximized Backup and Stability
-
3-5 Nights of Autonomy: Our systems are sized to provide ample backup power, ensuring the football pitch stays lit even after several consecutive rainy or cloudy days.
-
Fast Charging Capability: Optimized to work with our TOPCon solar panels, the battery can reach full charge within 5-7 hours of peak sunlight.
-
-20°C to 60°C Resilience: Engineered to perform in extreme climates, from desert heat to sub-zero winter nights.
| Parameter | Specifications |
|---|---|
| Service | OEM / ODM |
| Warranty | 5 Years |
| Cycle Life | 6000+ Cycles |
| Nominal Voltage | 24V |
| Max. Charging Voltage | 29.2V |
| Max. Charging Current | 100A (1C) |
| Max. Discharging Current | 100A (1C) |
| Charging Temperature | 0 ~ 55 °C |
| Discharging Temperature | -30 ~ 60 °C |
| Battery Configuration | 8S1P |
| Built-in BMS | Smart 8S 100A |
| Battery Case | Stainless Steel & Aluminum Alloy Housing |
| Components | Smart BMS + Metal Case |
| Certifications | MSDS, CE, UN38.3, RoHS, FCC, EMC |
Seamless Integration with the Complete Solar Football Stadium Lighting System
The Lithium Battery System stores surplus solar energy and delivers stable power during night-time operation and low-sunlight periods. Designed for deep-cycle use, long service life, and high safety standards, it ensures uninterrupted lighting performance. Intelligent battery management enhances efficiency, protects battery health, and supports long-term, maintenance-friendly operation of the entire system.
